Hole pattern
Diameter, depth, pitch and number of simultaneous holes
Determines spindle layout and drilling method.
MZ73213

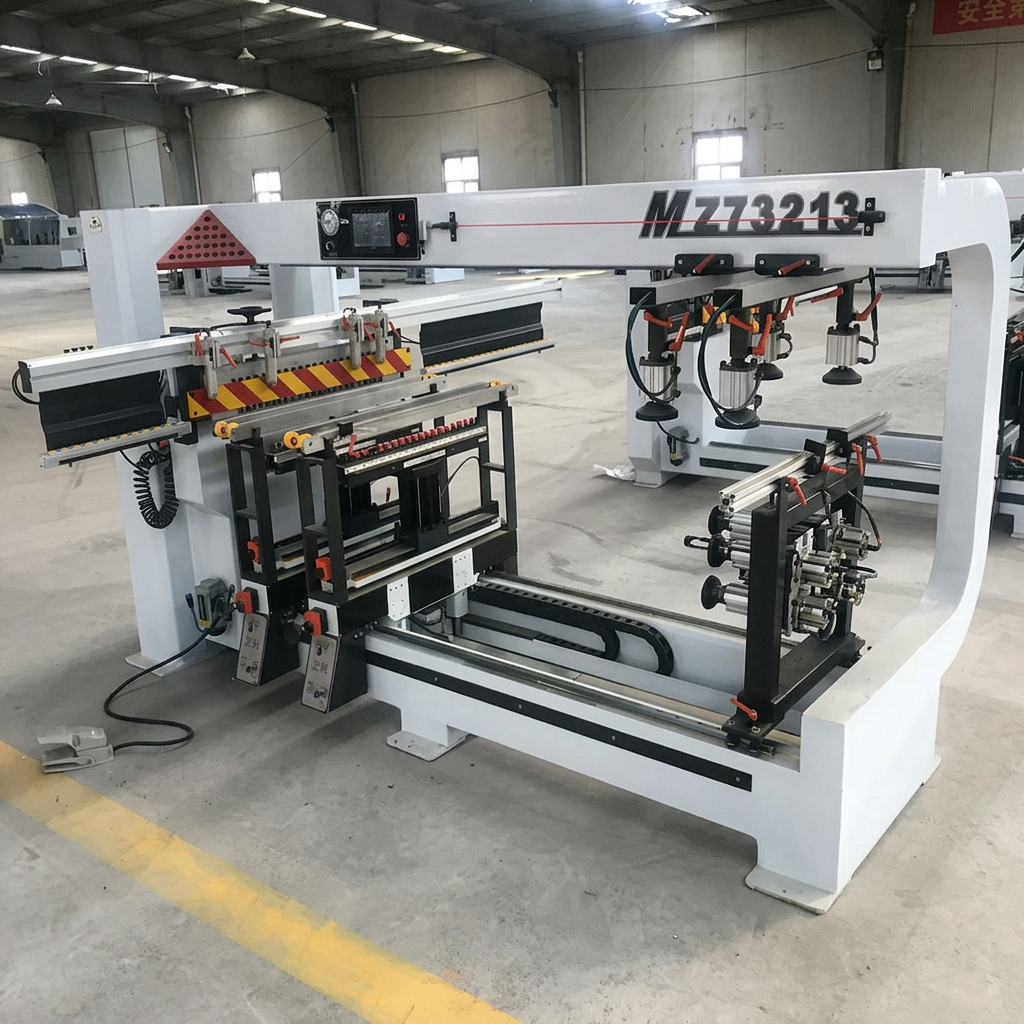

JDRG MZ73213 Three Rows Multi Spindle Woodworking Drilling Milling Machine High 10mm Max Drilling Dia 4.5kW 220V/380V
JDRG MZ73213 Three Rows Multi Spindle Woodworking Drilling Milling Machine High 10mm Max Drilling Dia 4.5kW 220V/380V from JDRG Woodworking Machinery.
- type: Drilling & Milling Machine
- max. drilling dia. (mm): 10
- cnc or not: Normal
- voltage: 380 V
Configuration planning
Confirm the right MZ73213 configuration
This page presents the currently available information for MZ73213. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.
Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.
Drilling direction
Top, bottom, horizontal and multi-face requirements
Defines how many setups or drilling units are needed.Workpiece range
Panel length, width, thickness and minimum part size
Confirms clamping and positioning compatibility.Batch and changeover
Repeated patterns, mixed batches and setup frequency
Guides the choice between fixed and programmable solutions.Technical data
Specifications
Specifications should be confirmed for the selected configuration before ordering.
Model
MZ73213
type
Drilling & Milling Machine
max. drilling dia. (mm)
10
cnc or not
Normal
voltage
380 V
voltage
220 V
warranty
1 Year
key selling points
High Productivity
machinery test report
Provided
video outgoing-inspection
Provided
core components
Motor
place of origin
CN;SHN
range of spindle speed(r.p.m)
1 - 2800
drilling speed
8m
brand name
JDRG
model number
MZ73213
dimension(l*w*h)
2500*2500*1460mm
power (kw)
4.5
weight (kg)
1300
Minimum Order
1
Unit
Piece
Product inquiry
Confirm configuration, price and delivery
Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
