Equipment category

Edge Banding Machines

Automatic edge banding equipment for panel edge application, trimming and finishing. Available models and configurations are confirmed for each project.

Request a recommendation
Edge Banding Machines

Selection guide

How to choose an edge banding machine

An edge banding machine applies and finishes edge material on furniture panels. A useful comparison starts with the panels and edge tapes you actually run, then matches the gluing system, machining stations and feed arrangement to the required finish and output.

Share panel thickness, edge thickness, edge material, minimum workpiece size and daily production target with JDRG. Also state whether you need pre-milling, corner rounding, scraping, buffing or other stations so the quotation can describe a comparable configuration.

Key factors to compare

Factor
What to confirm
Why it matters
Panel and edge range
Minimum and maximum panel thickness, edge thickness and strip material
Confirms that the feed path and trimming stations match the workpiece.
Glue system
Adhesive type, glue pot arrangement and changeover or cleaning needs
Affects bonding process, maintenance and material compatibility.
Machining stations
Pre-milling, end trimming, fine trimming, corner rounding, scraping and buffing
Defines the finish sequence and machine length.
Output target
Feed speed, panel mix, shift pattern and changeover frequency
Nameplate speed alone does not describe real production output.
Factory utilities

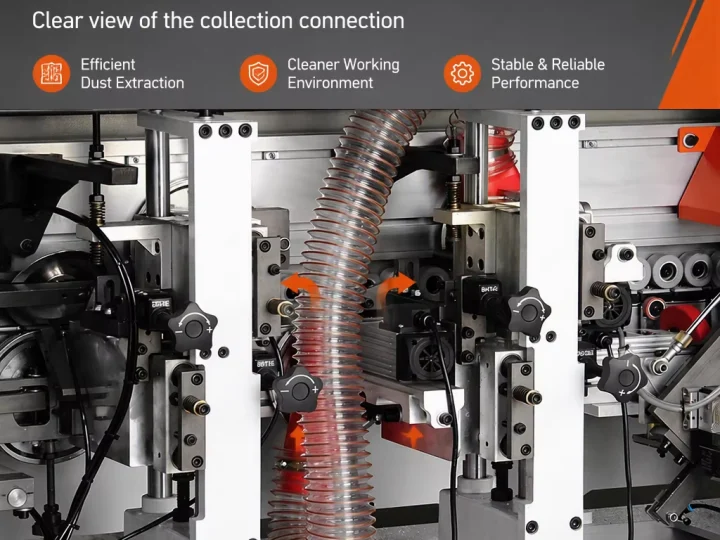

Voltage, frequency, compressed air and dust extraction
Ensures the offered configuration can be installed at the destination.

Available equipment

Primary model pages

Browse one clear page for each model or product group. Additional configurations remain available; contact us if you do not see the exact process you need.

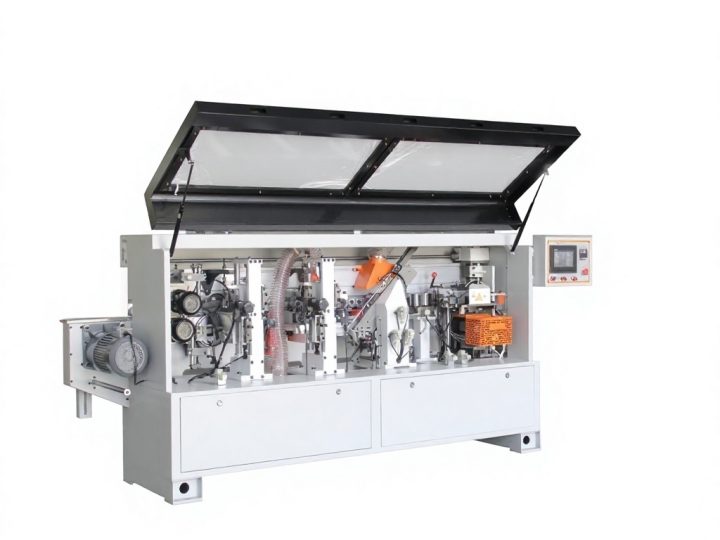

RG330

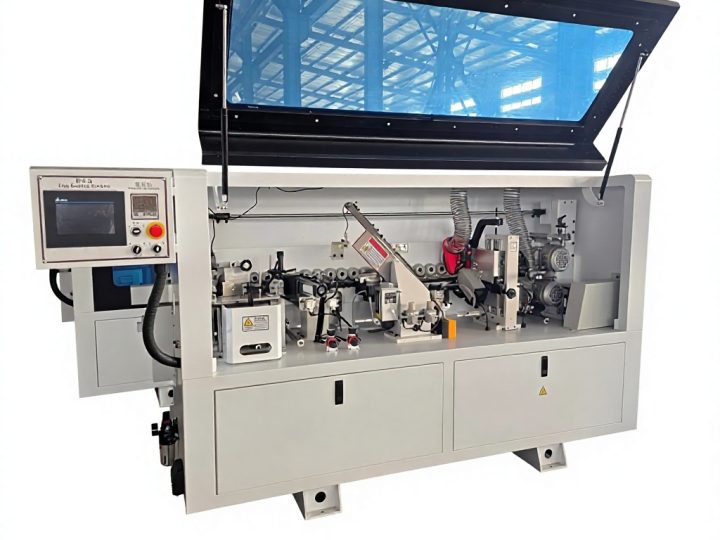

JDRG RG-330 High-speed Automatic Edge Banding Machine

Products Description ModelRG550Panel LengthMin.:70mmPanel WidthMin.:60mmPanel Thickness12-60mmBanding Tape Thickness0.3-3mmBanding Tape Width8-50mmFeeding Speed18m/minAir Pressure0.7MpaWeight700kgSize2300mm*680mm*1300mm Details Images Using a Delta HMIDelta screens give edge banding…

View equipment

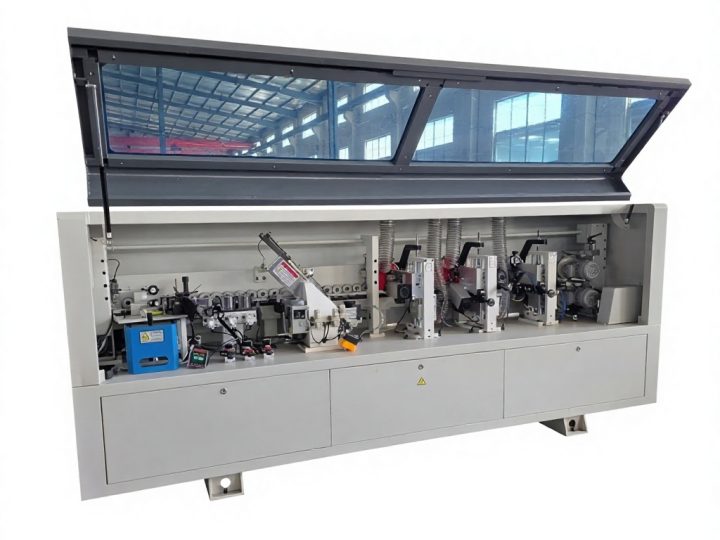

RG550

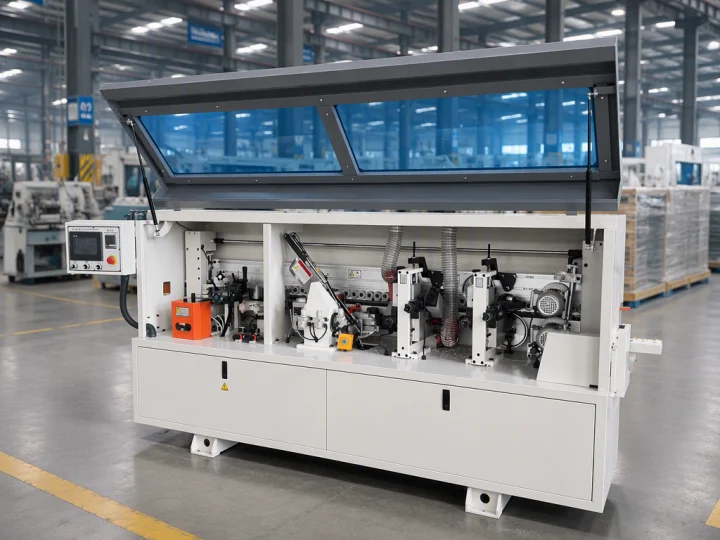

JDRG RG-550 High-speed Automatic Edge Banding Machine

Products Description ModelRG550Panel LengthMin.:70mmPanel WidthMin.:60mmPanel Thickness12-60mmBanding Tape Thickness0.3-3mmBanding Tape Width8-50mmFeeding Speed18m/minAir Pressure0.7MpaWeight700kgSize2300mm*680mm*1300mm Details Images Using a Delta HMIDelta screens give edge banding…

View equipment

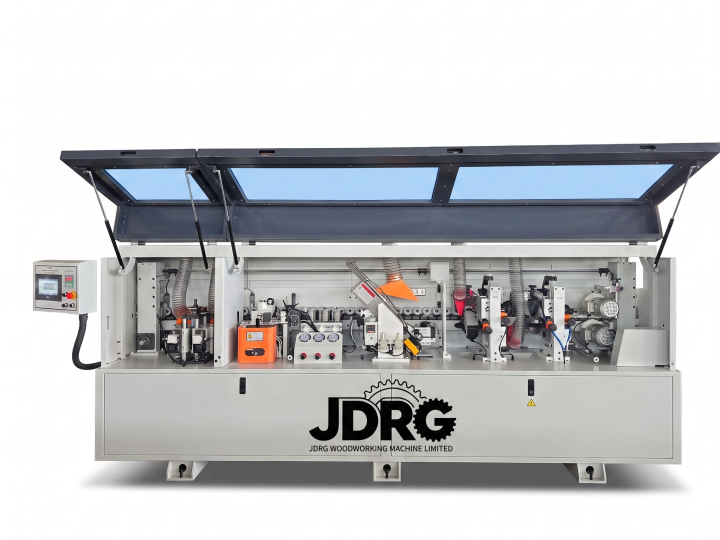

RG550D

JDRG RG-550D High-speed Automatic Edge Banding Machine

Products Description ModelRG550DPanel LengthMin.:70mmPanel WidthMin.:60mmPanel Thickness12-60mmBanding Tape Thickness0.3-3mmBanding Tape Width8-50mmFeeding Speed18m/minAir Pressure0.7MpaWeight850kgSize2950mm*680mm*1300mm Details Images Using a Delta HMIDelta screens give edge banding…

View equipment

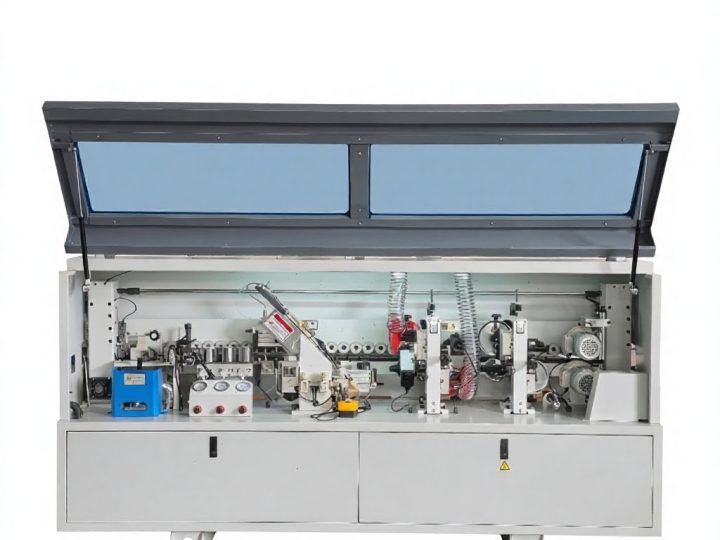

RG550S

JDRG RG-550S High-speed Automatic Edge Banding Machine

Products Description ModelRG550SPanel LengthMin.:70mmPanel WidthMin.:60mmPanel Thickness12-60mmBanding Tape Thickness0.3-3mmBanding Tape Width8-50mmFeeding Speed18m/minAir Pressure0.7MpaWeight1000kgSize3450mm*680mm*1300mm Details Images Using a Delta HMIDelta screens give edge banding…

View equipment

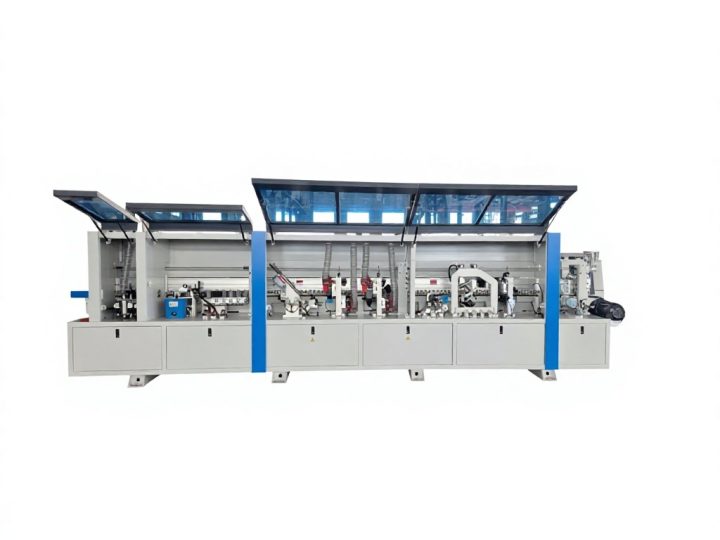

RG550DY

JDRG RG550DY High-speed Automatic Edge Banding Machine

Products Description ModelRG550DYPanel LengthMin.:70mmPanel WidthMin.:60mmPanel Thickness12-60mmBanding Tape Thickness0.3-3mmBanding Tape Width8-50mmFeeding Speed18m/minAir Pressure0.7MpaWeight1100kgsSize3550mm*680mm*1300mm Details Images Using a Delta HMIDelta screens give edge banding…

View equipment

Buying questions

Edge Banding Machines FAQ

These answers help prepare a useful configuration request. Final technical data is confirmed for the selected machine.

Provide panel material and dimensions, edge material and thickness, required machining stations, target output, voltage, frequency, compressed air availability and destination.

No. Compare the complete station sequence, applicable workpiece range, glue process, changeover needs, utilities and expected product mix as well as feed speed.

Not necessarily. Adhesive, temperature, pressure and finishing requirements vary by panel and edge material, so samples and process requirements should be confirmed.

Discuss this category

Get a configuration matched to your production

Tell us your material, dimensions, target output, electrical standard and destination.
