Working area
Usable X/Y/Z travel and workpiece clearance
Confirms that the largest sheet and operation fit the machine.
RG1325N

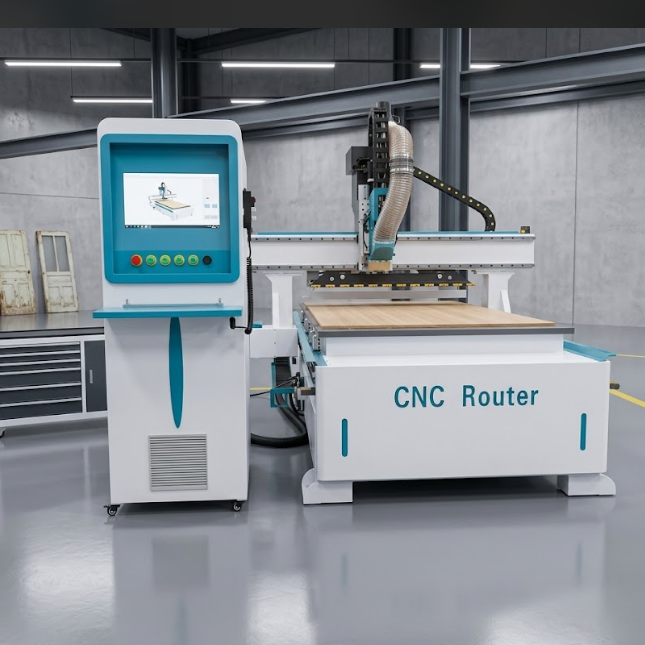

JDRG RG1325N Hot Sale CNC Router ATC High-accuracy 3 Axis Woodworking Cabinet Door Making Wood Atc CNC Router for Wood Cut
JDRG RG1325N Hot Sale CNC Router ATC High-accuracy 3 Axis Woodworking Cabinet Door Making Wood Atc CNC Router for Wood Cut from JDRG Woodworking Machinery.
- number of axes: 3
- No. of Spindles: Single
- machine type: Nesting CNC Router
- cnc or not: CNC
Configuration planning
Confirm the right RG1325N configuration
This page presents the currently available information for RG1325N. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.
Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.
Spindle and tooling
Material, cutter size, tool-change frequency and tool positions
Defines cutting capability and changeover time.Vacuum hold-down
Pump arrangement, table zones, spoilboard and part size
Small parts and porous boards may need different hold-down planning.Drilling and automation
Boring requirements, loading, unloading, labeling and scanning
Determines whether routing alone or an integrated cell is appropriate.Technical data
Specifications
Specifications should be confirmed for the selected configuration before ordering.
Model
RG1325N
number of axes
3
No. of Spindles
Single
machine type
Nesting CNC Router
cnc or not
CNC
control system brand
NC Studio
control system brand
DSP
voltage
380 V
voltage
200 V
warranty
1 Year
key selling points
Automatic
machinery test report
Provided
video outgoing-inspection
Provided
core components
Motor
core components
PLC
core components
Pressure Vessel
core components
Bearing
Accessory Type
Scanner
Accessory Type
Dust collection
place of origin
CN;SHN
range of spindle speed(r.p.m)
0 - 26000
positioning accuracy (mm)
0.01
travel (x axis)(mm)
1300
travel (y axis)(mm)
2500
repeatability (x/y/z) (mm)
0.02
Spindle Motor Power (kw)
9
brand name
LNC
dimension(l*w*h)
4000*2300*2300
weight (kg)
3000
Minimum Order
1
Unit
Piece
Product inquiry
Confirm configuration, price and delivery
Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
