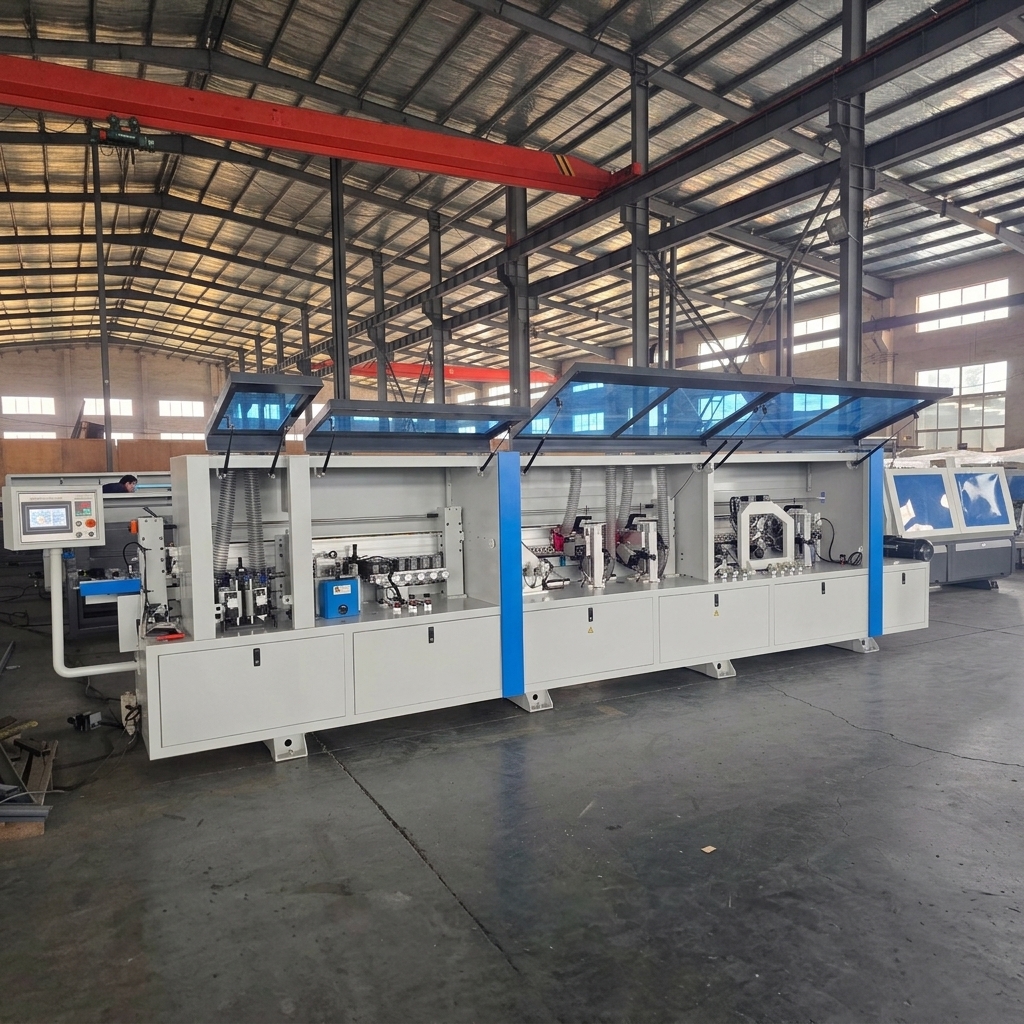

Name: Professional Plywood Edge Banding Machine with Pre Milling and Automatic Polishing for Commercial Furniture Manufacturing
Brand: JDRG
SKU: RG552SYF

Products Description

Model	RG552SYF
Panel Length	Min.:70mm
Panel Width	Min.:60mm
Panel Thickness	12-60mm
Banding Tape Thickness	0.3-3mm
Banding Tape Width	8-50mm
Feeding Speed	18m/min
Air Pressure	0.7Mpa
Weight	2500kg
Size	6800mm750mm1600mm

Details Images

Using a Delta HMI

Delta screens give edge banding machines precise, easy-to-use control and clear real-time feedback for higher efficiency.

Altendorf-Style Sliding Table

Schneider Electric components ensure durable, reliable performance and stable control for edge banding machines, even in dusty,
oily workshop environments.

oil pump

The automatic oil pump for the end-trimming cylinder delivers timed, precise lubrication, minimizing wear and extending service
life with virtually no manual maintenance.

Company Profile

JDRG WOODWORKING MACHINE LIMITED specializes in panel furniture woodworking machinery, including CNC routers, sliding table saws, automatic edge banding machines and multi‑spindle drilling machines.

Our ISO‑certified factory has 12 years of export experience. Located in Huangdao, our machines are exported to 60+ countries. Custom woodworking plant solutions and stable after‑sales service are available.

Customer Reviews

Packing and Shippmet

FAQ

:1.What guarantees your machine quality?
Our 8000㎡ ISO9001 factory adopts full inspection and mature production lines for stable precision.
·2. How about your delivery efficiency?
Located close to Huangdao port & airport, we support fast global shipment with short lead time.
·3.Can you offer local service overseas?
We cooperate with 40+ agents covering
·4.What afte60+ countries to provide localized support.r-sales services do you provide?
We offer 1-year warranty, free replacement of damaged parts (no repair), installation, training and lifelong technical guidance.

Configuration planning

Confirm the right RG552SYF configuration

This page presents the currently available information for RG552SYF. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.

Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.

Panel and edge range

Minimum and maximum panel thickness, edge thickness and strip material

Confirms that the feed path and trimming stations match the workpiece.

Glue system

Adhesive type, glue pot arrangement and changeover or cleaning needs

Affects bonding process, maintenance and material compatibility.

Machining stations

Pre-milling, end trimming, fine trimming, corner rounding, scraping and buffing

Defines the finish sequence and machine length.

Output target

Feed speed, panel mix, shift pattern and changeover frequency

Nameplate speed alone does not describe real production output.

Technical data

Specifications

Specifications should be confirmed for the selected configuration before ordering.

Model

RG552SYF

panel feed speed(m/min)

22

type

Edge Banding Machine

function

Gluing

function

End Trimming

function

Scraping

function

Buffing

function

Rough Trimming

function

Fine Trimming

function

Pre-milling

function

Corner Trimming

function

Cleaning Supplies

panel feed speed(m/min)

22

voltage

380 V

voltage

220 V

warranty

1 Year

key selling points

High Productivity

video outgoing-inspection

Provided

core components

Motor

usage

Particle Board Production

Material Type

Wood

Material Type

PVC

Material Type

Polyester

Platform Dimensions

3000mm*1300mm

place of origin

CN;SHN

brand name

JDRG

dimension(l*w*h)

3550*680*1300

power (kw)

12.8

weight (kg)

2000

Minimum Order

1

Unit

Piece

Product inquiry

Confirm configuration, price and delivery

Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
