JDRG Woodworking Machinery

JDRG552SYF

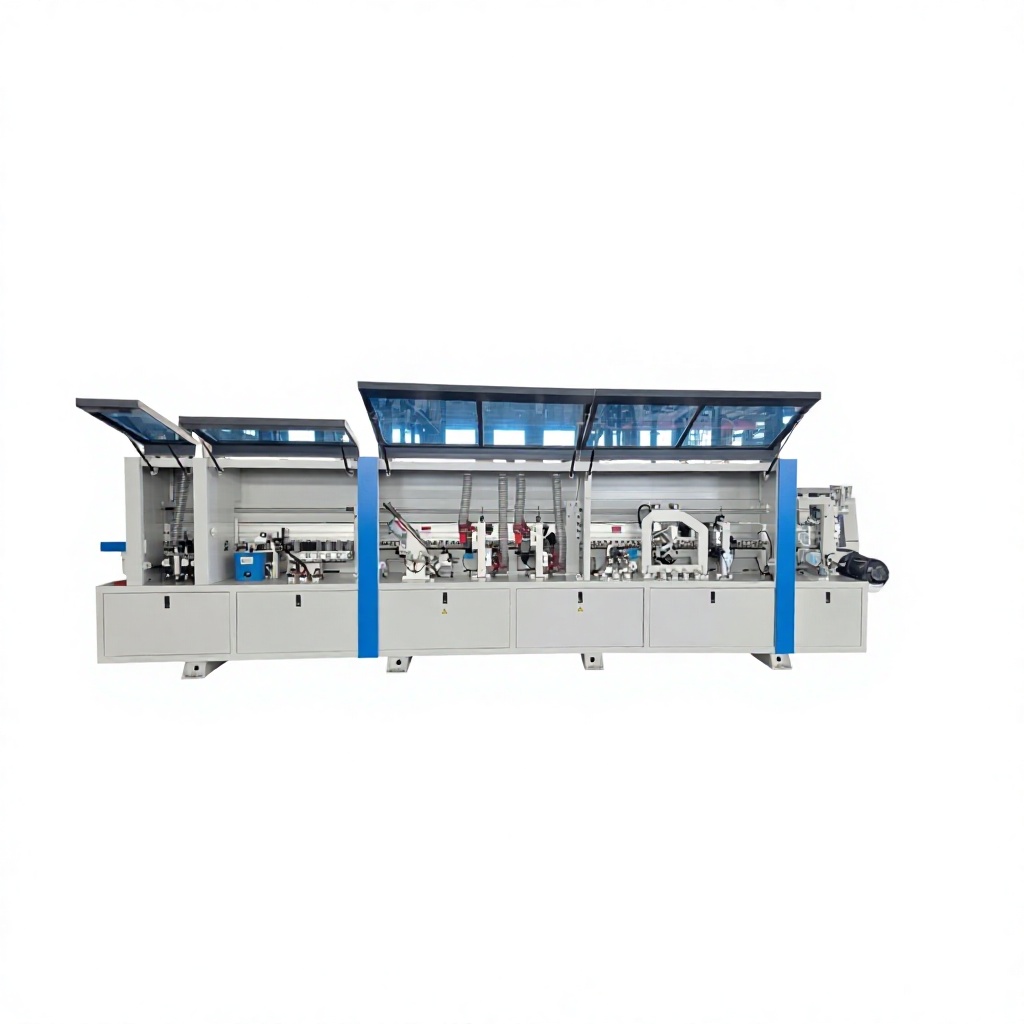

RG552SYF Automatic Edge Banding Machine Pre-Milling Profile Tracking Double Trimming Woodworking Edge Bander

RG552SYF Automatic Edge Banding Machine Pre-Milling Profile Tracking Double Trimming Woodworking Edge Bander from JDRG Woodworking Machinery.

  • type: Edge Banding Machine
  • function: Buffing
  • function: End Trimming
  • function: Fine Trimming
Request price & configuration

Configuration planning

Confirm the right JDRG552SYF configuration

This page presents the currently available information for JDRG552SYF. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.

Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.

Panel and edge range

Minimum and maximum panel thickness, edge thickness and strip material

Confirms that the feed path and trimming stations match the workpiece.

Glue system

Adhesive type, glue pot arrangement and changeover or cleaning needs

Affects bonding process, maintenance and material compatibility.

Machining stations

Pre-milling, end trimming, fine trimming, corner rounding, scraping and buffing

Defines the finish sequence and machine length.

Output target

Feed speed, panel mix, shift pattern and changeover frequency

Nameplate speed alone does not describe real production output.

Technical data

Specifications

Specifications should be confirmed for the selected configuration before ordering.

Model
JDRG552SYF
type
Edge Banding Machine
function
Buffing
function
End Trimming
function
Fine Trimming
function
Gluing
function
Rough Trimming
function
Scraping
function
Corner Trimming
function
Pre-milling
panel feed speed(m/min)
18
panel feed speed(m/min)
20
panel feed speed(m/min)
22
panel feed speed(m/min)
24
warranty
1 Year
key selling points
Competitive Price
video outgoing-inspection
Provided
core components
Motor
Material Type
Wood
place of origin
CN;SHN
brand name
JDRG
voltage
Customized
dimension(l*w*h)
6700*750*1600mm
power (kw)
12.8
weight (kg)
2000
usage
edge banding
Minimum Order
1
Unit
Piece
Weight
2000
Package Dimensions
670 × 75 × 160

Product inquiry

Confirm configuration, price and delivery

Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
