JDRG Woodworking Machinery

WF-802

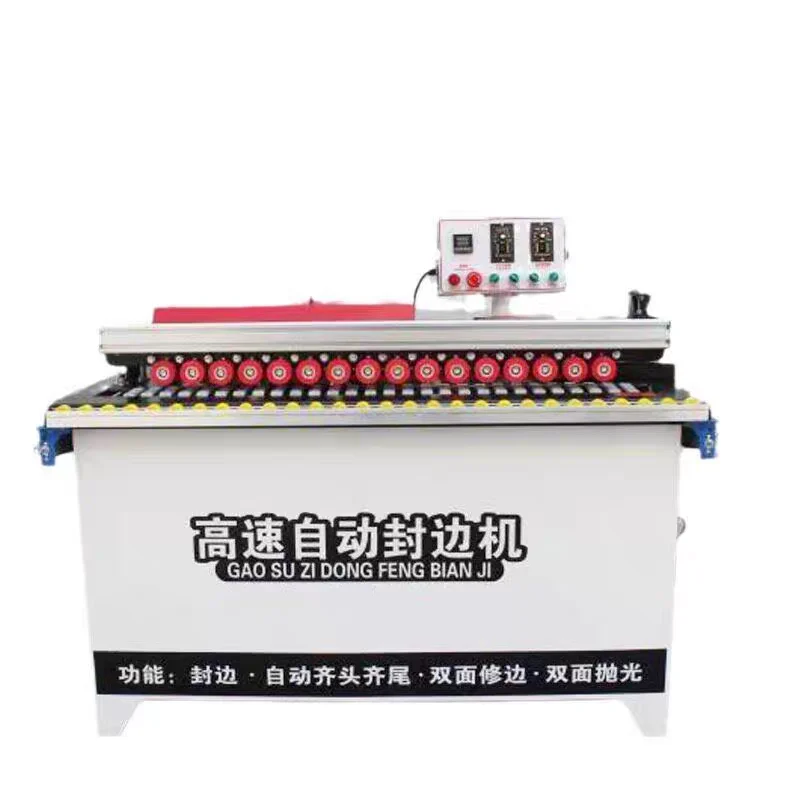

WF 802 High Speed Automatic Edge Banding Portable PVC Edge Bander MDF Panel Furniture Woodworking Edge Banding Machine

WF 802 High Speed Automatic Edge Banding Portable PVC Edge Bander MDF Panel Furniture Woodworking Edge Banding Machine from JDRG Woodworking Machinery.

  • type: Edge Banding Machine
  • function: Gluing
  • function: End Trimming
  • function: Buffing
Request price & configuration

Configuration planning

Confirm the right WF-802 configuration

This page presents the currently available information for WF-802. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.

Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.

Panel and edge range

Minimum and maximum panel thickness, edge thickness and strip material

Confirms that the feed path and trimming stations match the workpiece.

Glue system

Adhesive type, glue pot arrangement and changeover or cleaning needs

Affects bonding process, maintenance and material compatibility.

Machining stations

Pre-milling, end trimming, fine trimming, corner rounding, scraping and buffing

Defines the finish sequence and machine length.

Output target

Feed speed, panel mix, shift pattern and changeover frequency

Nameplate speed alone does not describe real production output.

Technical data

Specifications

Specifications should be confirmed for the selected configuration before ordering.

Model
WF-802
type
Edge Banding Machine
function
Gluing
function
End Trimming
function
Buffing
function
Cleaning Supplies
panel feed speed(m/min)
6
voltage
380 V
voltage
220 V
warranty
1 Year
key selling points
Easy To Operate
video outgoing-inspection
Provided
core components
Motor
core components
PLC
usage
MDF Production
Material Type
Wood
place of origin
CN;SHN
brand name
JDRG
dimension(l*w*h)
1350*525*1080
power (kw)
4
weight (kg)
150
Minimum Order
1
Unit
Piece

Product inquiry

Confirm configuration, price and delivery

Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
