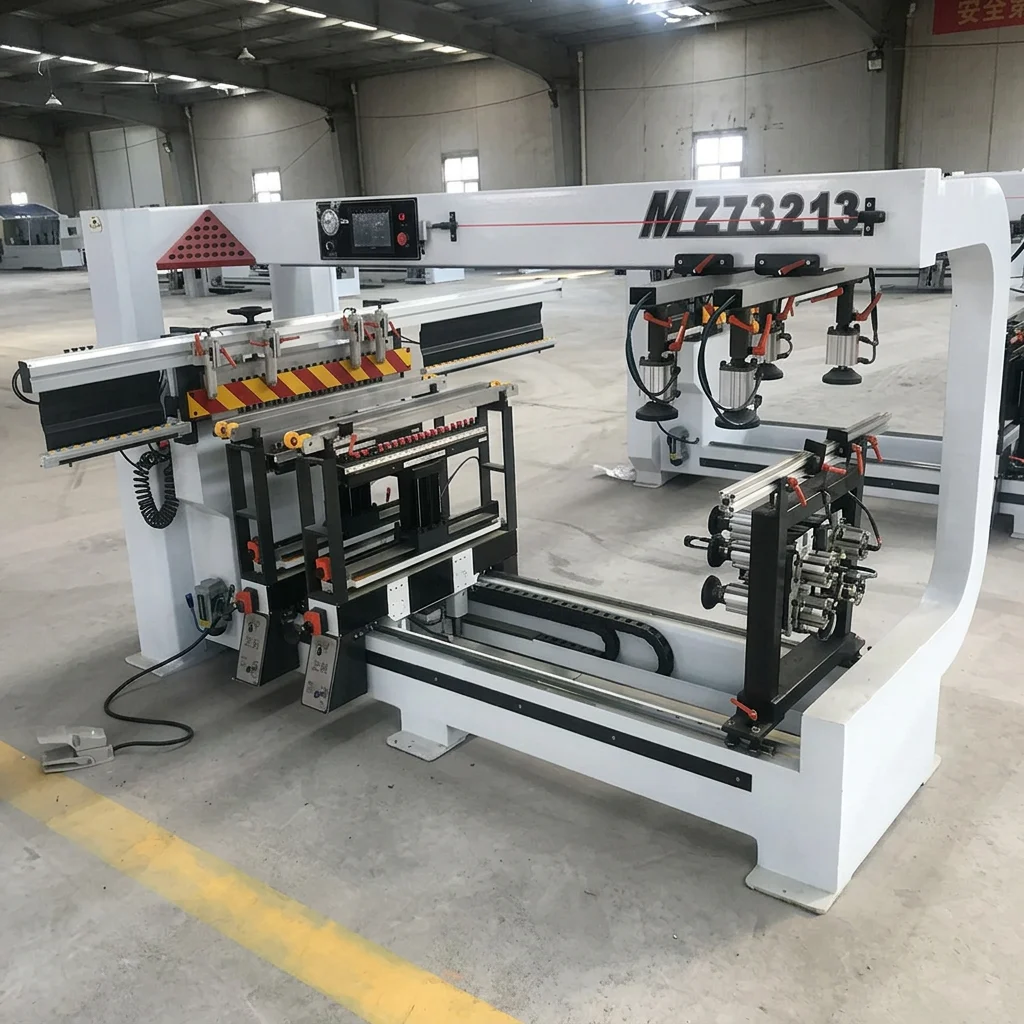

MZ73213 Woodworking Drilling Machine for Cabinet Panels

Company Profile

JDRG WOODWORKING MACHINE LIMITED specializes in panel furniture woodworking machinery, including CNC routers, sliding table saws, automatic edge banding machines and multi‑spindle drilling machines.

Our ISO‑certified factory has 12 years of export experience. Located in Huangdao, our machines are exported to 60+ countries. Custom woodworking plant solutions and stable after‑sales service are available.

Customer Reviews

Packing and Shippmet

FAQ

:1.What guarantees your machine quality?
Our 8000㎡ ISO9001 factory adopts full inspection and mature production lines for stable precision.
·2. How about your delivery efficiency?
Located close to Huangdao port & airport, we support fast global shipment with short lead time.
·3.Can you offer local service overseas?
We cooperate with 40+ agents covering
·4.What afte60+ countries to provide localized support.r-sales services do you provide?
We offer 1-year warranty, free replacement of damaged parts (no repair), installation, training and lifelong technical guidance.

Configuration planning

Confirm the right MZ73213 configuration

This page presents the currently available information for MZ73213. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.

Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.

Hole pattern

Diameter, depth, pitch and number of simultaneous holes

Determines spindle layout and drilling method.

Drilling direction

Top, bottom, horizontal and multi-face requirements

Defines how many setups or drilling units are needed.

Workpiece range

Panel length, width, thickness and minimum part size

Confirms clamping and positioning compatibility.

Batch and changeover

Repeated patterns, mixed batches and setup frequency

Guides the choice between fixed and programmable solutions.

Applications

Typical applications

Cabinet connector holes
Shelf-pin rows
Panel edge drilling
Furniture component boring

Technical data

Specifications

Specifications should be confirmed for the selected configuration before ordering.

Model

MZ73213

type

Drilling Machine

warranty

1 Year

key selling points

High-Accuracy

core components

Bearing

core components

Motor

Material Type

Wood

Material Type

PVC

place of origin

CN;SHN

brand name

JDRG

voltage

220/380V

dimension(l*w*h)

3100*2500*1600mm

power (kw)

4.5

weight (kg)

1300

video outgoing-inspection

Provided

usage

Woodworking

Platform Dimensions

2500*1200mm

Minimum Order

1

Unit

Piece

Product questions

Buying questions

Answers for this equipment category. Final details depend on the selected configuration.

Show panel size, reference edges, hole diameter, depth, pitch, drilling face and tolerances, plus the expected batch size.

It is useful when repeated hole patterns can be drilled together and the spindle arrangement matches the product design.

Some configurations can be planned for line handling or digital job data. The required interfaces must be confirmed before ordering.

Product inquiry

Confirm configuration, price and delivery

Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
