Working area
Usable X/Y/Z travel and workpiece clearance
Confirms that the largest sheet and operation fit the machine.
PEM-6090W

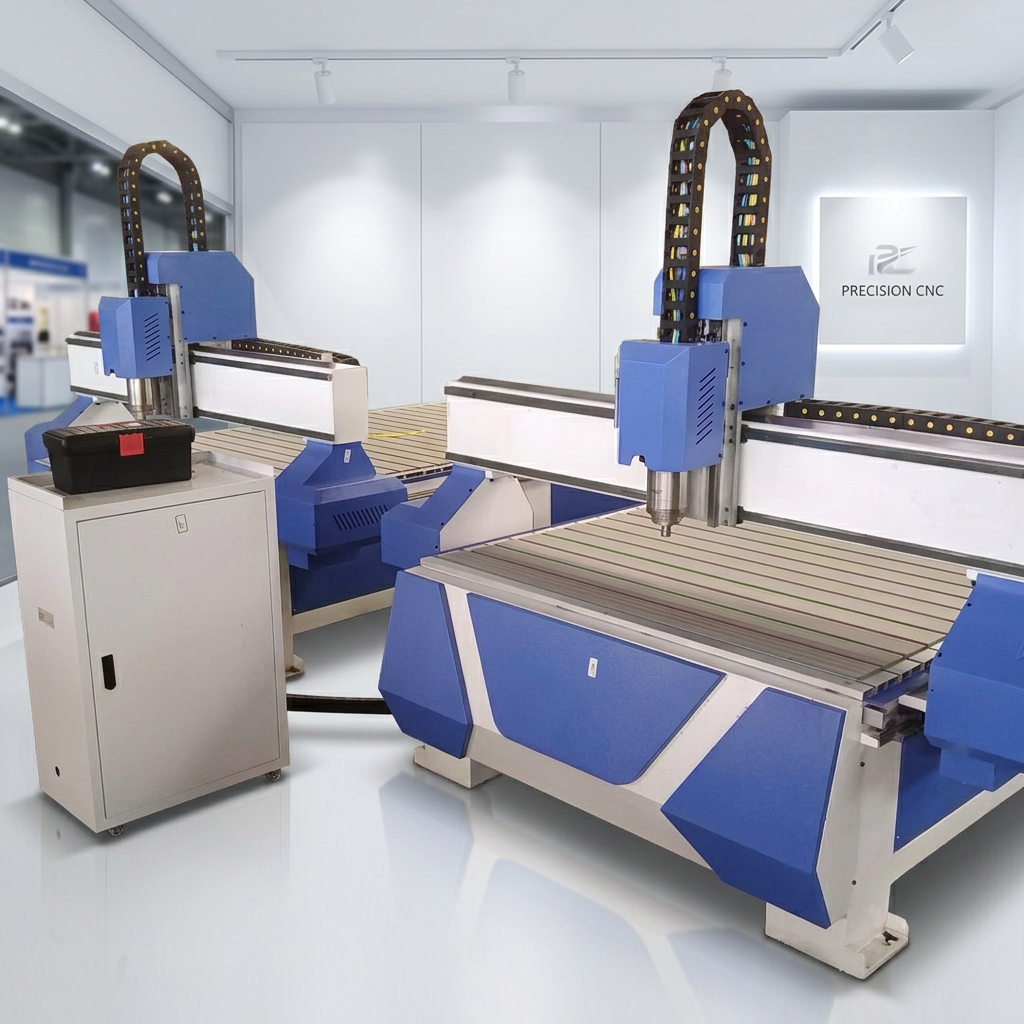

Factory Direct JDRG 3-Axis Single Motor CNC Router 6090 Working Size 380V Easy Operate Wood/Acrylic/MDF/PVC Engraving Cutting
Factory Direct JDRG 3-Axis Single Motor CNC Router 6090 Working Size 380V Easy Operate Wood/Acrylic/MDF/PVC Engraving Cutting from JDRG Woodworking Machinery.
- number of axes: 3
- No. of Spindles: Single
- machine type: CNC Router
- cnc or not: Normal
Configuration planning
Confirm the right PEM-6090W configuration
This page presents the currently available information for PEM-6090W. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.
Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.
Spindle and tooling
Material, cutter size, tool-change frequency and tool positions
Defines cutting capability and changeover time.Vacuum hold-down
Pump arrangement, table zones, spoilboard and part size
Small parts and porous boards may need different hold-down planning.Drilling and automation
Boring requirements, loading, unloading, labeling and scanning
Determines whether routing alone or an integrated cell is appropriate.Technical data
Specifications
Specifications should be confirmed for the selected configuration before ordering.
Model
PEM-6090W
number of axes
3
No. of Spindles
Single
machine type
CNC Router
cnc or not
Normal
voltage
380 V
key selling points
Easy To Operate
machinery test report
Provided
video outgoing-inspection
Provided
core components
Motor
Accessory Type
Dust collection
place of origin
CN;SHN
range of spindle speed(r.p.m)
0 - 24000
positioning accuracy (mm)
0.02
travel (x axis)(mm)
600
travel (y axis)(mm)
900
repeatability (x/y/z) (mm)
0.02
Spindle Motor Power (kw)
1.5
brand name
JDRG
dimension(l*w*h)
1150*1450*1600
weight (kg)
500
warranty
12 MONTHS
Minimum Order
1
Unit
Piece
Weight
500
Package Dimensions
115 × 145 × 160
Product inquiry
Confirm configuration, price and delivery
Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
