Process type
Cold press, hot press, membrane or vacuum application
Defines the basic machine and control arrangement.
RG-80T

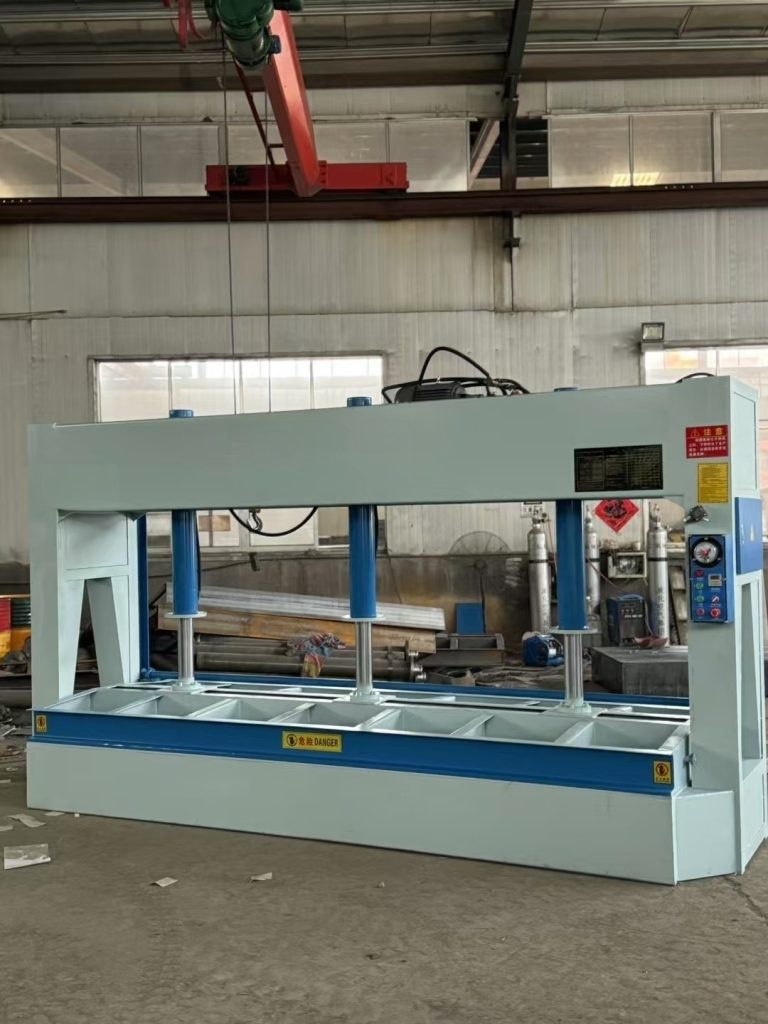

JDRG RG-80T Factory Direct Sales of Composite Board Woodworking Cold Press Hydraulic Automatic Cold Press
JDRG RG-80T Factory Direct Sales of Composite Board Woodworking Cold Press Hydraulic Automatic Cold Press from JDRG Woodworking Machinery.
- max.pressure(t): 80
- working table size(mm): 1250×2500
- video outgoing-inspection: Provided
- machinery test report: Provided
Configuration planning
Confirm the right RG-80T configuration
This page presents the currently available information for RG-80T. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.
Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.
Workpiece and opening
Platen size, daylight opening, number of layers and stroke
Confirms the load fits the press.Pressure distribution
Required total force and uniformity across the workpiece
Important for consistent bonding and dimensional results.Temperature and cycle
Heating method, operating temperature, dwell and cooling needs
Changes productivity and process control.Technical data
Specifications
Specifications should be confirmed for the selected configuration before ordering.
Model
RG-80T
max.pressure(t)
80
working table size(mm)
1250×2500
video outgoing-inspection
Provided
machinery test report
Provided
core components
Motor
type
Cold Press
voltage
380 V
voltage
220 V
warranty
1 Year
key selling points
Easy To Operate
place of origin
CN;SHN
brand name
JDRG
weight (kg)
2100
power (kw)
4
dimension(l*w*h)
2950X1250X2250
Minimum Order
1
Unit
Piece
Product inquiry
Confirm configuration, price and delivery
Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
