A2 Pro Series
A2 Pro Series Dust Collector for Woodworking Workshops

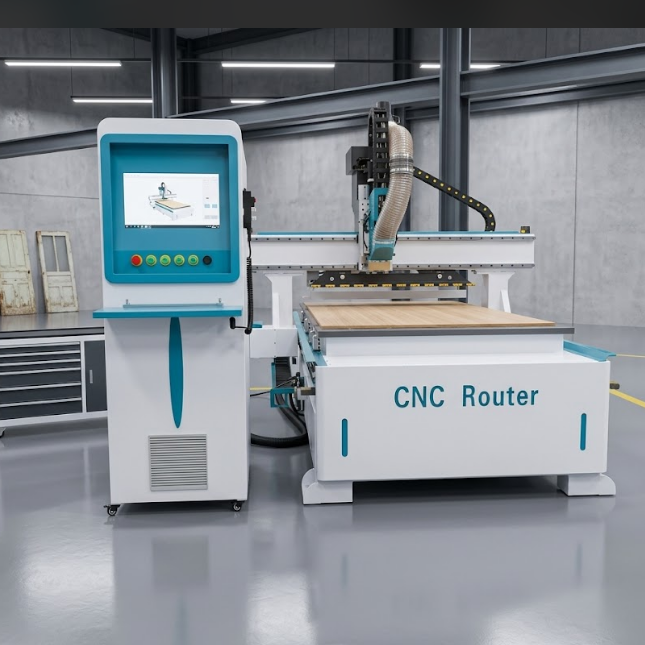

Large 9KW 3-Axis Automatic Tool Swap CNC Machine with 1-Year Warranty Vacuum Absorption Table for Wooden Door Processing from JDRG Woodworking Machinery.
- number of axes: 3
- No. of Spindles: Single
- machine type: CNC Router
- cnc or not: CNC
Configuration planning
Confirm the right A2 Pro Series configuration
This page presents the currently available information for A2 Pro Series. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.
Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.
Connected machines
Port sizes, required capture and simultaneous operation
Establishes the real system demand.Airflow and pressure
Required flow at each pickup and total duct resistance
Both are needed to select a fan and duct network.Dust characteristics
Particle size, moisture, abrasiveness and combustible-dust considerations
Affects filtration, discharge and safety design.Filter and cleaning
Filter media, cleaning method and maintenance access
Influences pressure loss and long-term performance.Applications
Typical applications
- Single-machine extraction
- Workshop dust collection
- Panel line central systems
- Sanding and routing dust control
Technical data
Specifications
Specifications should be confirmed for the selected configuration before ordering.
Model
A2-1325-Pro,A2-2040-Pro,A2-1530-Pro,A2-2030-Pro
number of axes
3
No. of Spindles
Single
machine type
CNC Router
cnc or not
CNC
control system brand
DSP
control system brand
NC Studio
warranty
1 Year
key selling points
Automatic
machinery test report
Provided
video outgoing-inspection
Provided
core components
Bearing
core components
Engine
core components
Gear
core components
Motor
core components
PLC
core components
Pressure Vessel
core components
Pump
Accessory Type
Dust collection
Accessory Type
Scanner
place of origin
CN;SHN
range of spindle speed(r.p.m)
0 - 24000
positioning accuracy (mm)
0.02
travel (x axis)(mm)
1300
travel (y axis)(mm)
2500
repeatability (x/y/z) (mm)
0.02
Spindle Motor Power (kw)
9KW
brand name
JDRG
voltage
380V/50HZ
voltage
220V/50HZ
dimension(l*w*h)
3900*2200*1900mm
weight (kg)
2100
Minimum Order
1
Unit
Piece
Weight
2100
Package Dimensions
390 × 220 × 190
Product questions
Buying questions
Answers for this equipment category. Final details depend on the selected configuration.
Provide connected machines, port diameters, simultaneous-use plan, duct lengths and bends, dust type, discharge method and installation location.
No. The collector and fan must deliver the required airflow against the resistance of ducting, filters and fittings.
A qualified local engineer should evaluate applicable fire, explosion, electrical and environmental requirements for the installation.
Product inquiry
Confirm configuration, price and delivery
Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
