JDRG Woodworking Machinery

RG330DYF

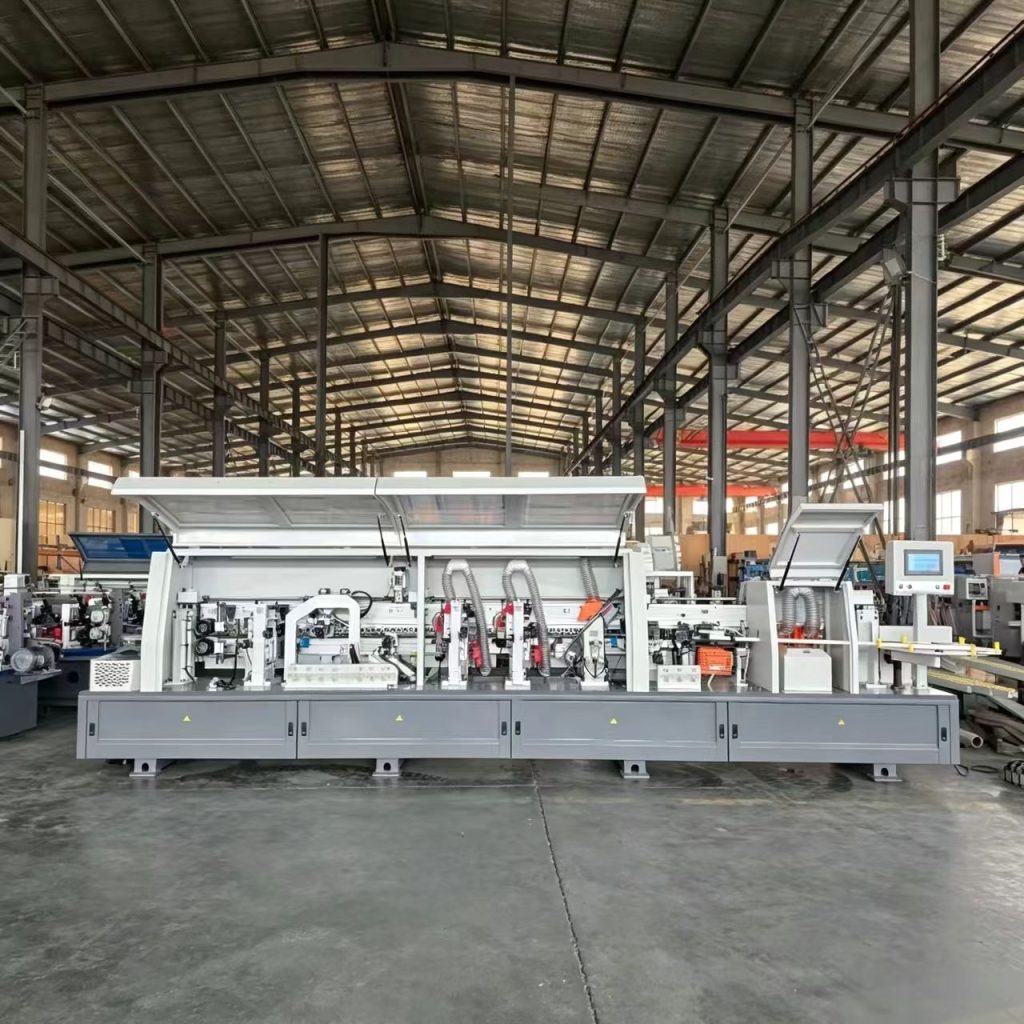

RG330SYF Auto Edge Bander With Pre-milling & Corner Rounding PVC Veneer Edge Banding Machine for MDF Particle Board

RG330SYF Auto Edge Bander With Pre-milling & Corner Rounding PVC Veneer Edge Banding Machine for MDF Particle Board from JDRG Woodworking Machinery.

  • type: Edge Banding Machine
  • function: Corner Trimming
  • function: Gluing
  • function: Fine Trimming
Request price & configuration

Configuration planning

Confirm the right RG330DYF configuration

This page presents the currently available information for RG330DYF. The final machine, options and utilities should be matched to your material, workpiece and production target before ordering.

Send a representative drawing, material details and the destination electrical standard. JDRG can then confirm which configuration and technical sheet apply to your project.

Panel and edge range

Minimum and maximum panel thickness, edge thickness and strip material

Confirms that the feed path and trimming stations match the workpiece.

Glue system

Adhesive type, glue pot arrangement and changeover or cleaning needs

Affects bonding process, maintenance and material compatibility.

Machining stations

Pre-milling, end trimming, fine trimming, corner rounding, scraping and buffing

Defines the finish sequence and machine length.

Output target

Feed speed, panel mix, shift pattern and changeover frequency

Nameplate speed alone does not describe real production output.

Technical data

Specifications

Specifications should be confirmed for the selected configuration before ordering.

Model
RG330DYF
type
Edge Banding Machine
function
Corner Trimming
function
Gluing
function
Fine Trimming
function
Rough Trimming
function
End Trimming
function
Scraping
function
Pre-milling
panel feed speed(m/min)
22
panel feed speed(m/min)
24
panel feed speed(m/min)
26
voltage
380 V
voltage
220 V
warranty
1 Year
key selling points
Automatic
video outgoing-inspection
Provided
core components
Motor
core components
PLC
Material Type
Wood
place of origin
CN;SHN
brand name
JDRG
dimension(l*w*h)
6800mm*950mm*1650mm
power (kw)
16
weight (kg)
2500
usage
Edge Banding
Minimum Order
1
Unit
Piece

Product inquiry

Confirm configuration, price and delivery

Include panel material, workpiece dimensions, voltage and destination for a more accurate response.
