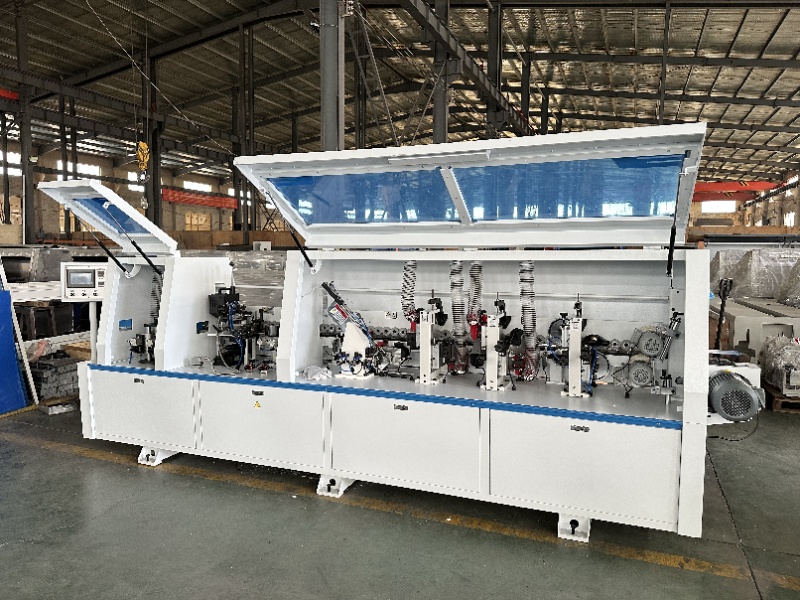

The RG550SY is an automatic edge banding machine for panel-furniture production. It combines pre-milling, gluing and pressing, trimming, edge scraping and buffing in one continuous workflow.
Processing functions

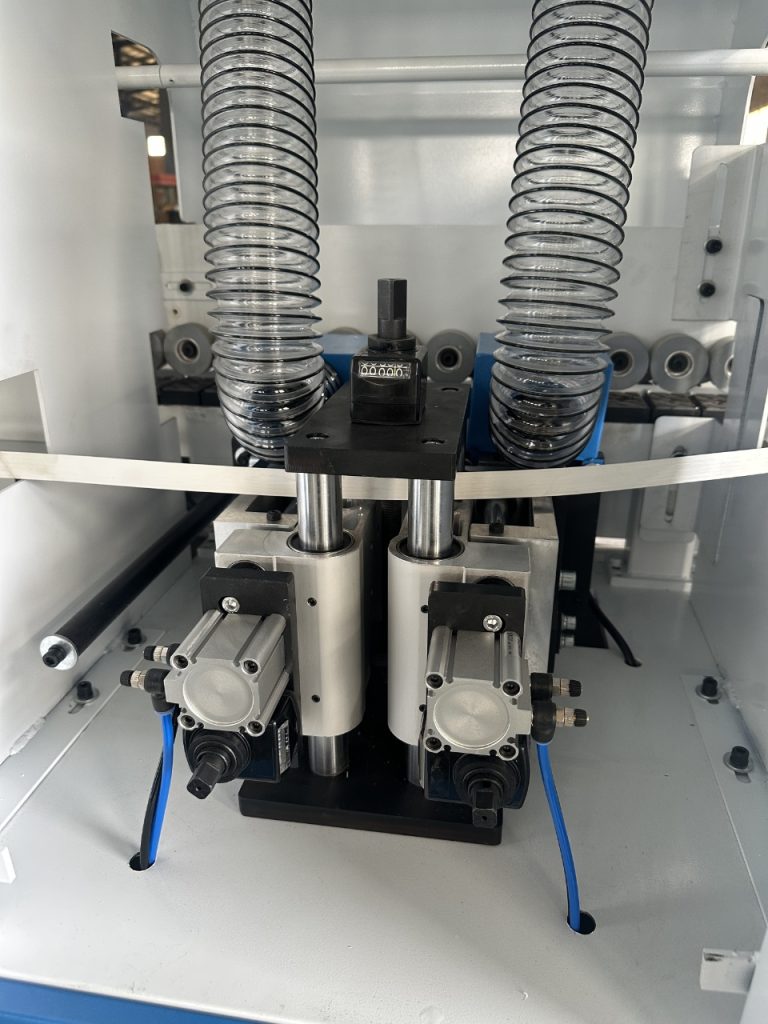

- Pre-milling

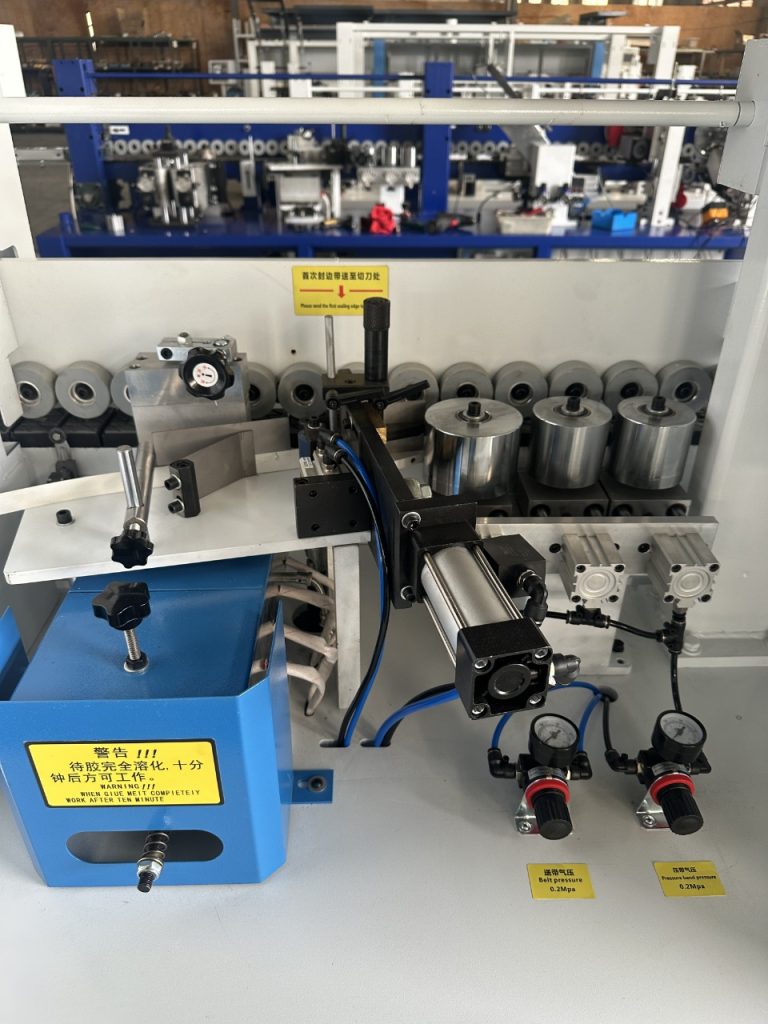

- Gluing and pressing

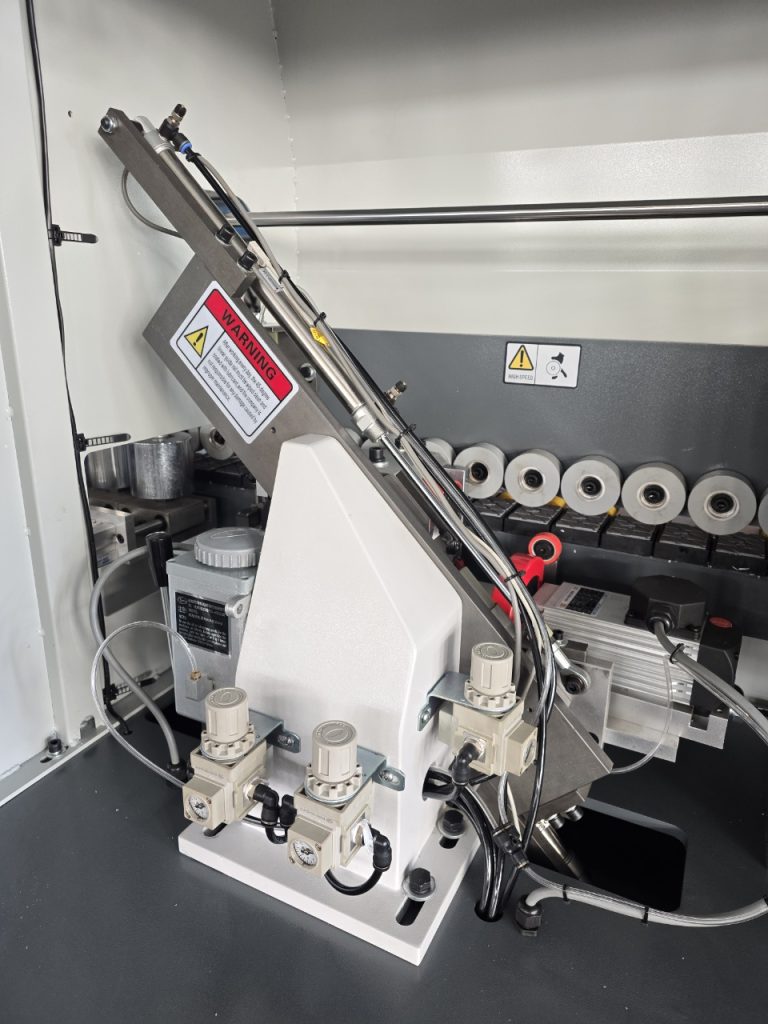

- End trimming
- Rough trimming

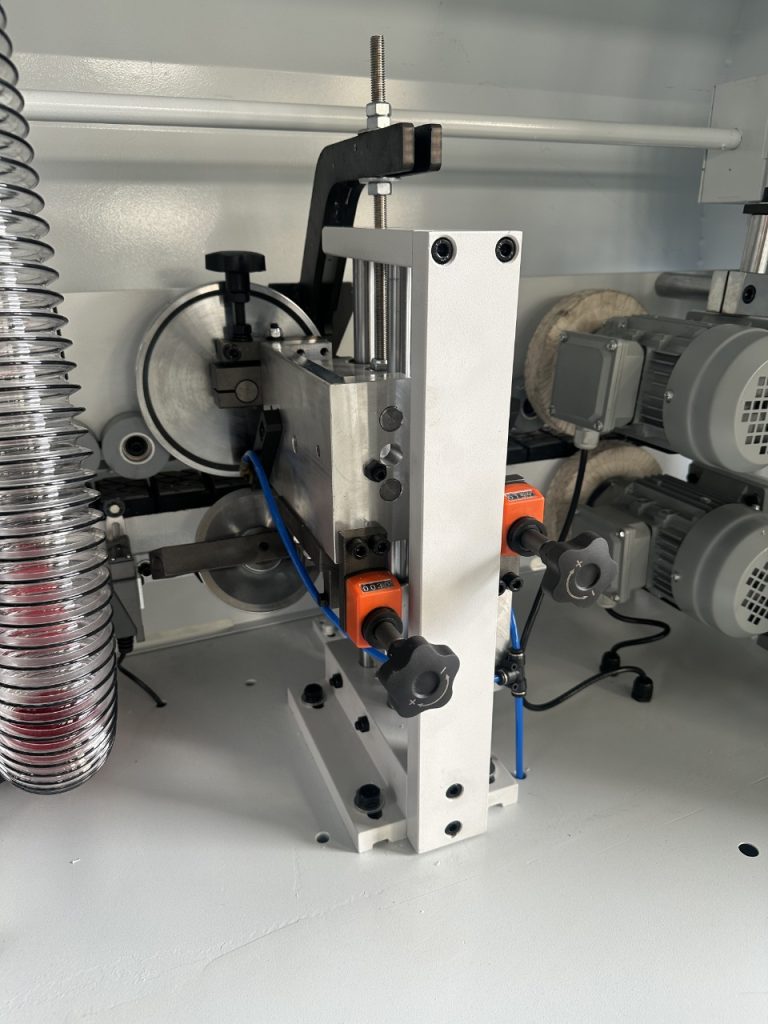

- Fine trimming
- Edge scraping

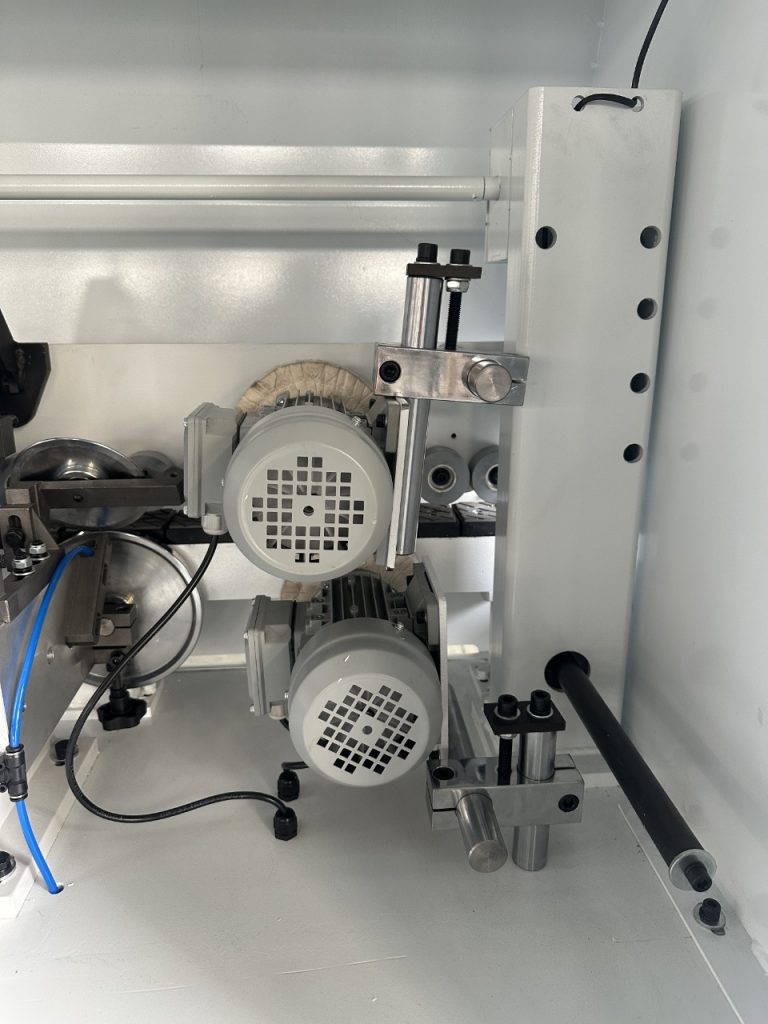

- Buffing

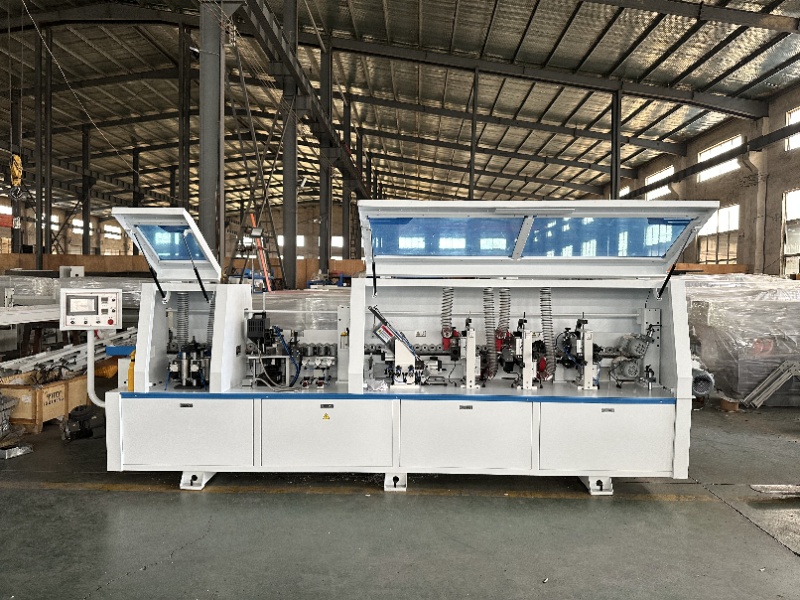

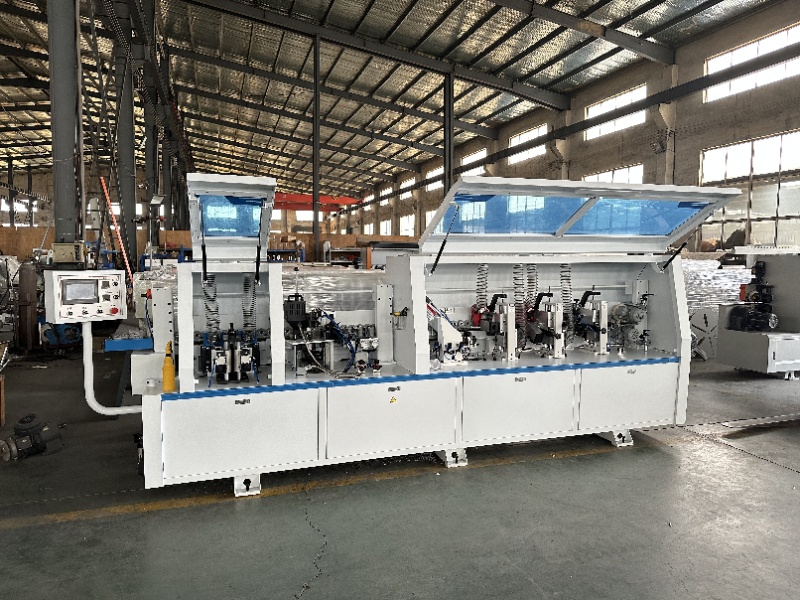

Machine walk-through
Machine details
Component configuration
- PT220 conveyor guide rails for wear resistance, a smooth surface and dimensional stability.
- Zhejiang Lingzhi conveyor motor with pure-copper windings.
- CC (Changchuan) high-speed motors.
- Hiwin end-trimming guide rails.
- AirTAC solenoid valves and pneumatic components.

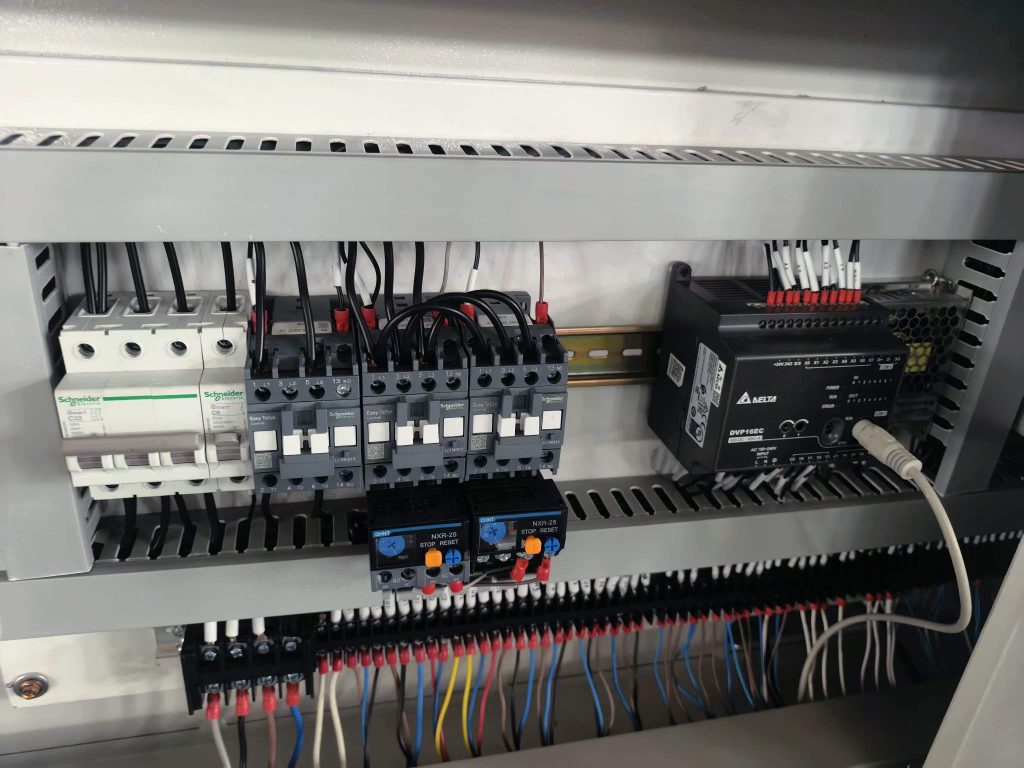

- Schneider electrical components.

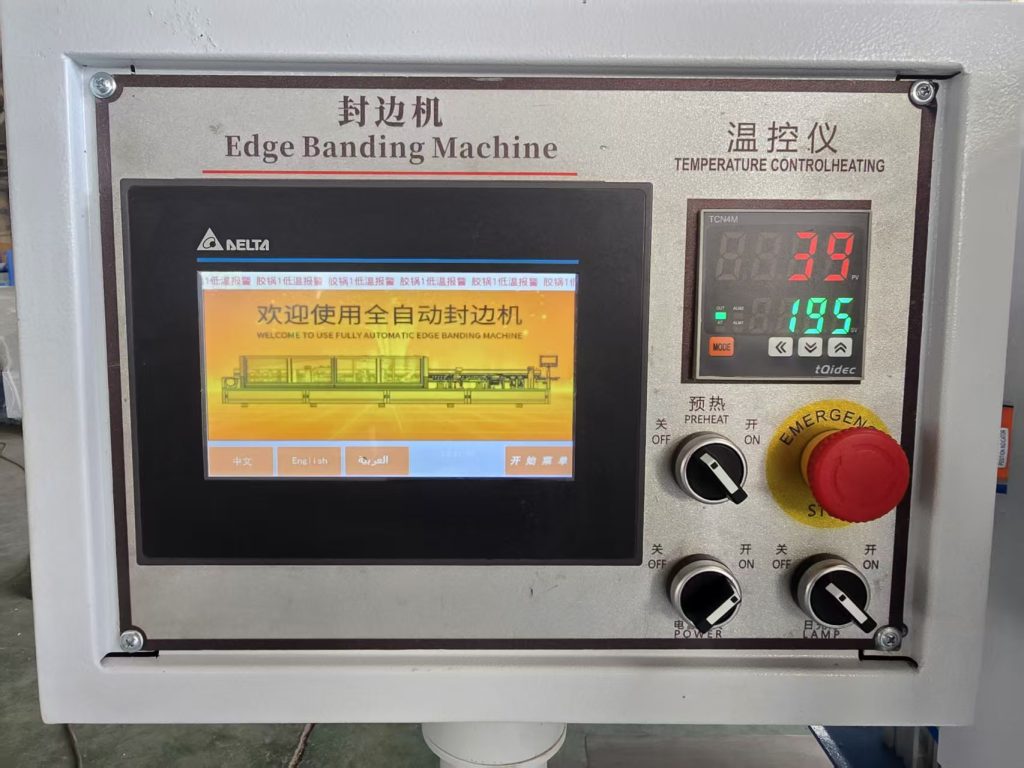

- Delta PLC and touchscreen control.
- Delta and Haizhongcheng variable-frequency drives for the supplied configuration.
Component brands and the final electrical configuration should be reconfirmed in the quotation for the ordered machine.
